Fit for
YAMAHA RHINO 660 2004-2007;
YAMAHA GRIZZLY 660 2002-2008
Replaces OEM#:
Wet Clutch Cover Gasket: 5KM-15463-00.
Oil Seal: 5KM-17619-00-01, 93102-35004-00.
Wet Clutch Pad Shoe: 5KM-16620-00-00.
One Way Bearing: 4SH-16664-00-00.
Clutch Cover Housing: 5KM-16611-10-00.
Clutch Flange Nut: 90179-22005-00, 90179-16001-00.
Primary Dry Clutch: 5UG-17620-00-00.
Oil Filter: 5 GH-13440-70-00.
Material:
Clutch Cover Housing: High Carbon Steel.
Clutch Primary Fixed Sheave: Aluminum, Steel.
Primary Dry Clutch: Aluminum, Steel.
Clutch CVT Pulley Secondary Driven: Aluminum, Steel.
Wet Clutch Pad Shoe: High Carbon Steel.
One Way Bearing Bearing: Steel.
Clutch Cover Gasket: Rubber, Leather, Paper.
Clutch Flange Nut: High Carbon Steel.
Oil Seal: Chemigum.
Includes:

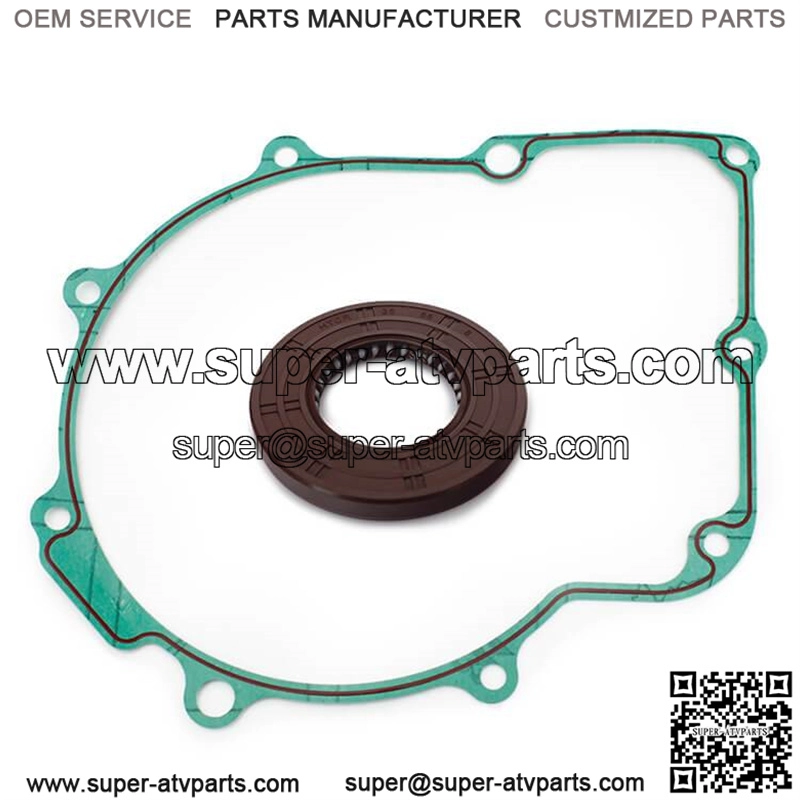

Kit1: Clutch Gasket + Oil Seal
Kit2: Clutch Cover Gasket + Pad Shoe + Oil Seal
Kit3: Clutch Cover Gasket + Pad Shoe + Oil Seal + One Way Bearing
Kit4: Clutch Cover Drum Housing + Clutch Primary Fixed Sheave + Clutch Cover Gasket + Oil Seal
Kit5: Wet Clutch Pad Shoe + Clutch Primary Fixed Sheave + Clutch Cover Housing + Bearing + Gasket + Flange Nuts + Oil Seal
Kit6: Clutch Primary Fixed Sheave + Clutch Cover Housing + Pad Shoe + Bearing + Gasket + Flange Nut + Oil Seal + Oil Filter
Kit7: Clutch Primary Fixed Sheave + Primary Dry Clutch CVT Sheave Assy + Clutch Cover Housing + Pad Shoe + Bearing + Gasket + Flange Nut + Oil Seal + Oil Filter

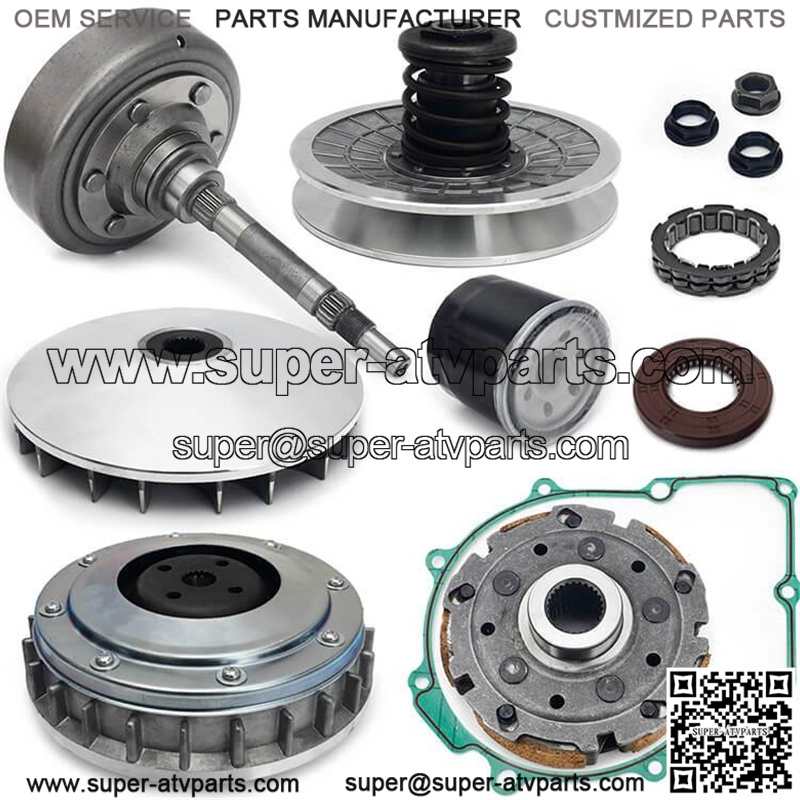

Kit8: Clutch Primary Fixed Sheave + Primary Dry Clutch CVT Sheave Assy + Secondary Driven Clutch CVT Pulley + Housing + Pad Shoe + Bearing + Gasket + Flange Nut + Oil Seal + Oil Filter
