Rear Upper Outer Control Arm Bushing Kit For Polaris 5137590 5135501 | 5439874

Rear Upper Outer Control Arm Bushing Kit For Polaris 5137590 5135501 | 5439874
Facebook
Twitter
LinkedIn
Reddit

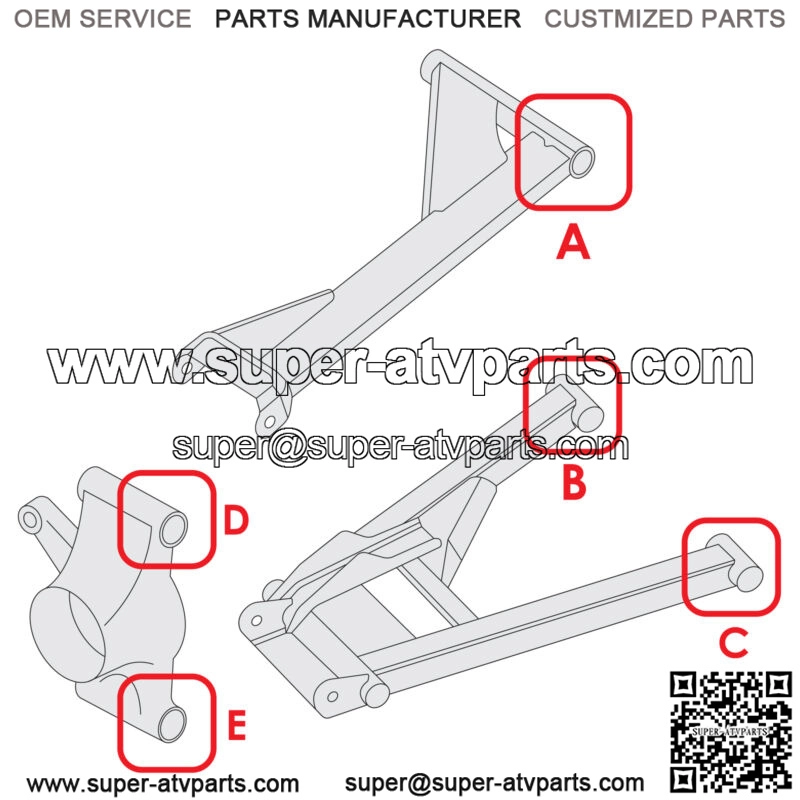

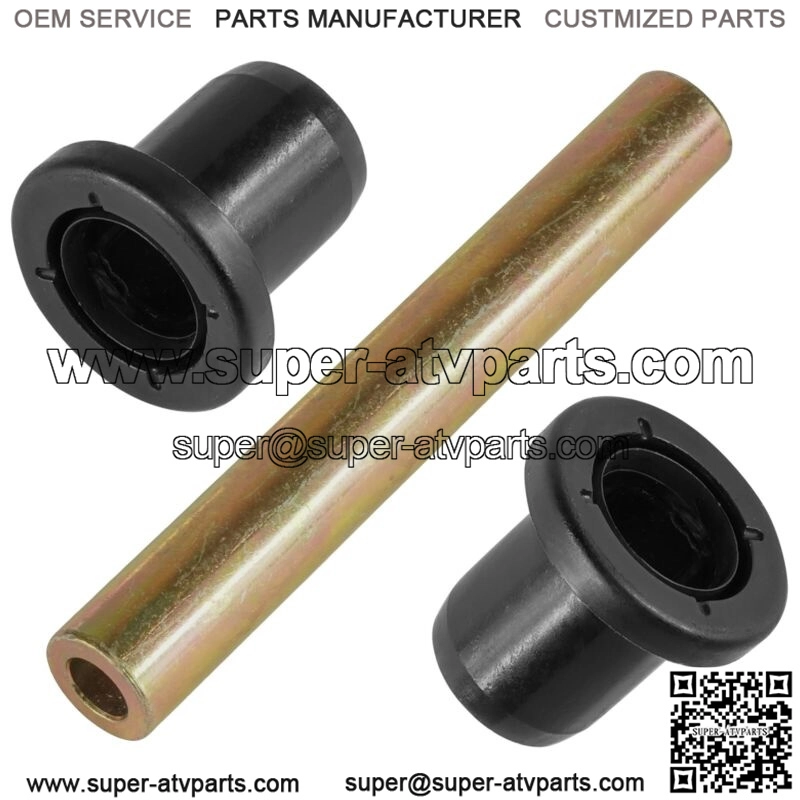

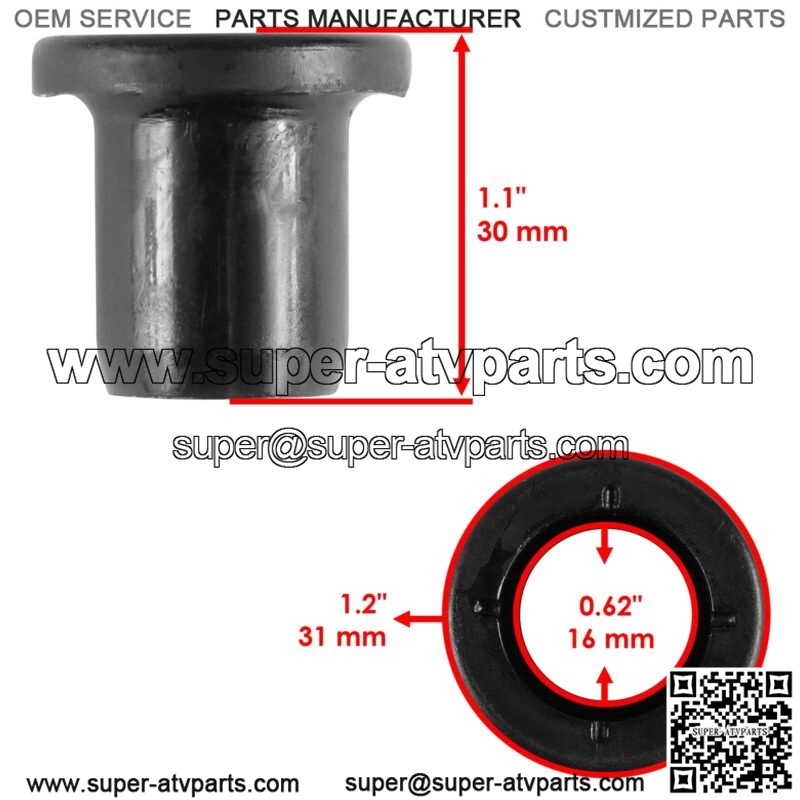

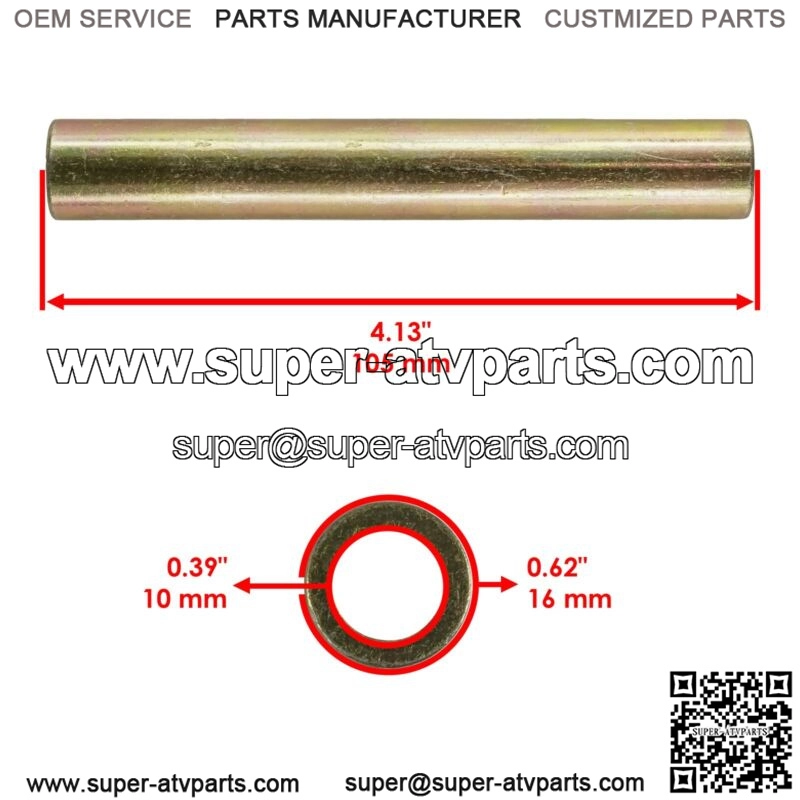

Premium Quality Replacement PartRear Upper Outer Left or Right Control Arm Bushing KitFor Models:Sportsman 550 EPS 2010-2014Sportsman XP 550 2010Sportsman XP 550 HD 2013-2014Sportsman XP 850 2010-2015Sportsman 550 Forest 2011-2014Sportsman 850 Forest 2011-2014Sportsman 550 Touring 2011-2014Sportsman 850 Touring 2011-2014Sportsman X2 550 2011-2014Sportsman X2 850 2011Sportsman 850 SP 2015-2020Sportsman 850 HL 2016-2019Sportsman 850 48″ 2021-2023Scrambler 850 2014-2022Control Arm Part Number:Rear Upper Left 1025619-067 1017216-067 1025619-689 1017216-619 1025619-293 1025619-385 1017216-385Rear Upper Right 1025620-067 1017217-067 1025620-689 1017217-619 1025619-293 1025620-385 1017217-385Note: Installs On Location (D) In Second PictureOrder Includes:1x Pivot Shaft : 5137590 5135501Length : 105mm | 4.13″Inner Diameter : 10mm | 0.39″Outer Diameter : 16mm | 0.62″2x Bushing : 5439874 5436505 5436832Height : 30mm | 1.1″Inner Diameter : 16mm | 0.62″Outer Diameter : 31mm | 1.2″ **
