Rear Lower Pivot Bushing Control Arm Kit for Polaris Sportsman XP 1000 2015-2021 (For: Polaris)
Rear Lower Pivot Bushing Control Arm Kit for Polaris Sportsman XP 1000 2015-2021 (For: Polaris)
Rear Lower Pivot Bushing Control Arm Kit for Polaris Sportsman XP 1000 2015-2021 (For: Polaris)
Premium Quality Replacement Part
Rear Left or Right Lower Pivot & Bushing Control Arm Kit
For Polaris Models:
Sportsman XP 1000 2015-2021
Control Arm Part Number:
Rear Lower Left
Sportsman XP 1000 2015-2016 2020-2021 1019410-067
Sportsman XP 1000 2017-2018 1022011-067 1022011-293 1022011-385
Sportsman XP 1000 2019 1022011-067
Rear Lower Right
Sportsman XP 1000 2015-2016 2020-2021 1019411-067
Sportsman XP 1000 2017-2018 1022012-067 1022012-293 1022012-385
Sportsman XP 1000 2019 1022012-067
Note:

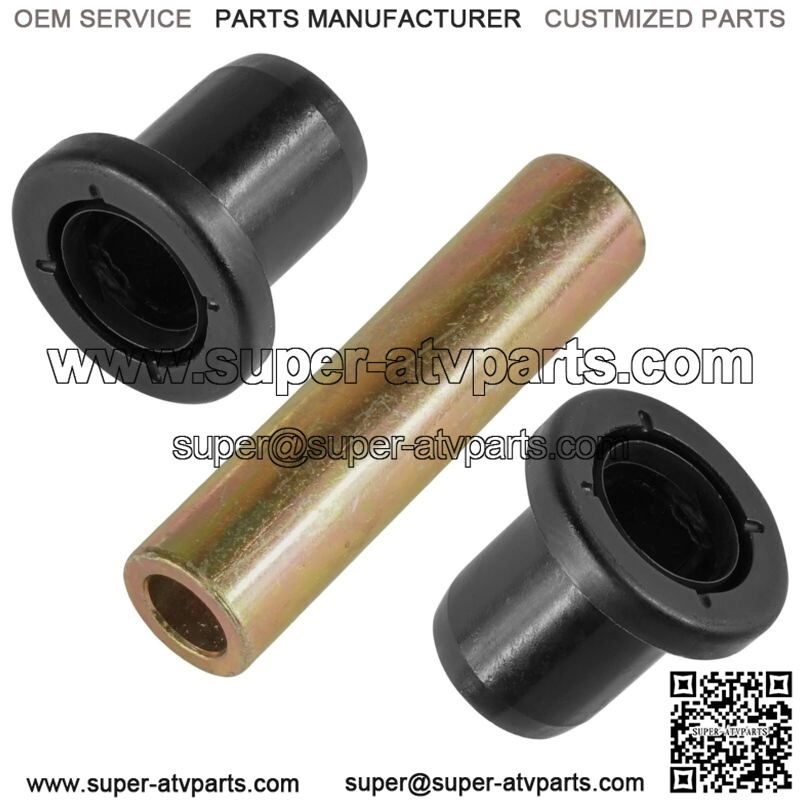

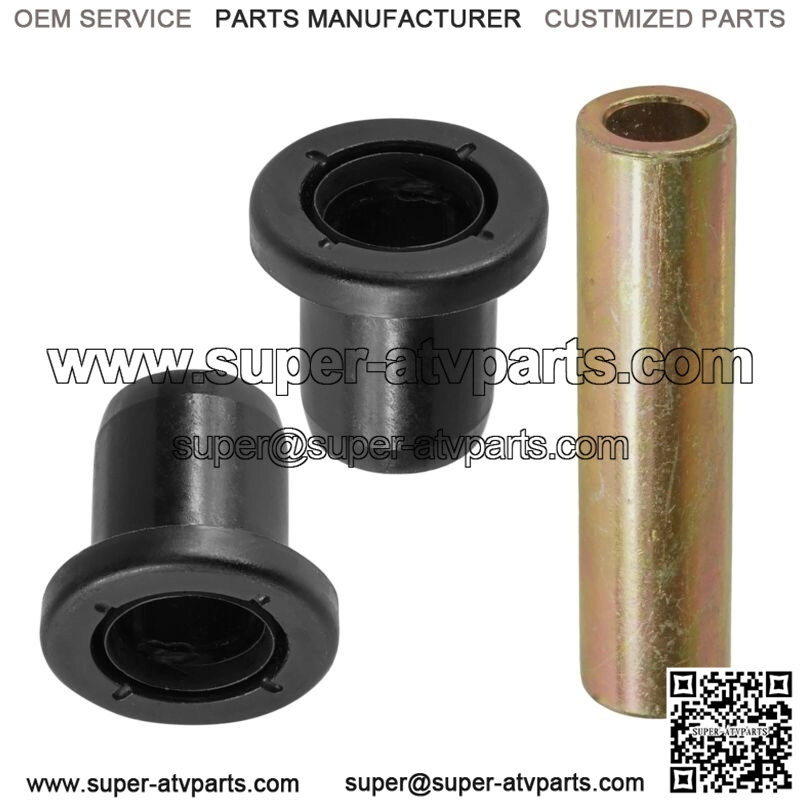

Installs On Location (C) or (D) In Second PictureOrder Includes:

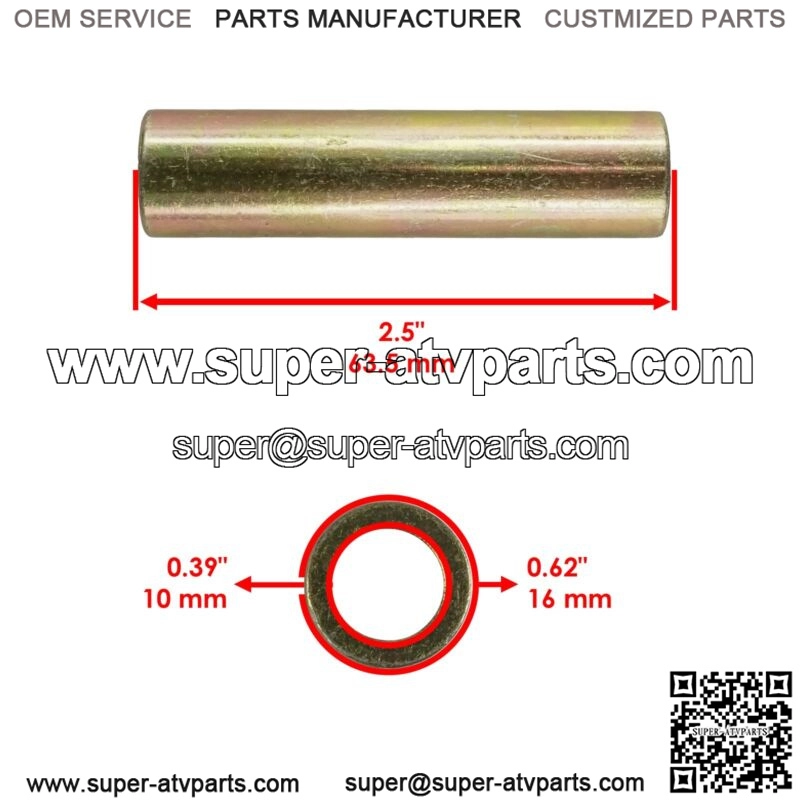

1 x Pivot Shaft: 5137346
Length: 2.5″ | 63.5 mm
Inner Diameter: 0.39″ | 10.0 mm
Outer Diameter: 0.62″ | 16.0 mm

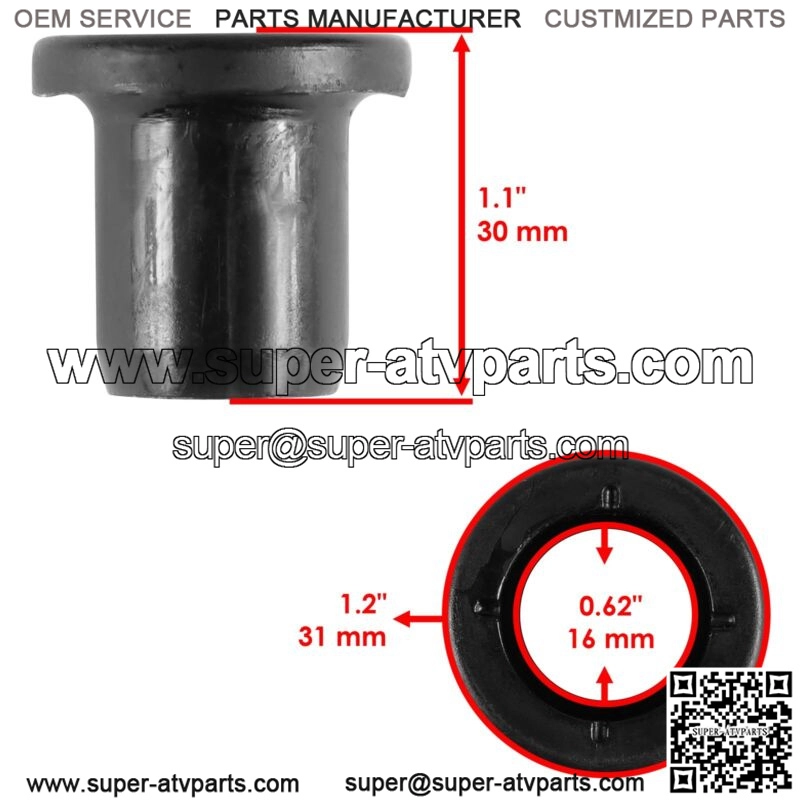

2 x Bushing: 5439874
Height: 1.1″ | 30.0 mm
Inner Diameter: 0.62″ | 16.0 mm
Outer Diameter: 1.2″ | 31.0 mm
**
