Premium Quality Replacement Part
Rear Lower Outer & Inner Left or Right Control Arm Bushing Kit
Fits Following Polaris Models:
Sportsman XP 1000 2015-2021
Sportsman XP 1000 Touring 2015-2021
Sportsman XP 1000 High Lifter Edition 2016-2021

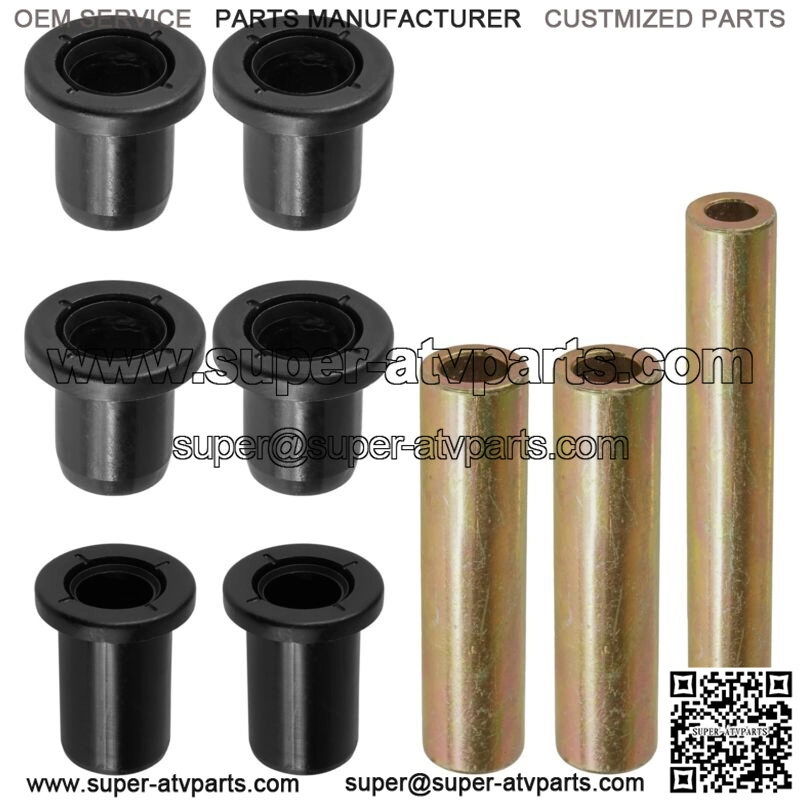

Sportsman XP 1000 Hunter Edition 2020-2021Order Includes:
1 x Lower Outer Pivot Shaft | 5136473
2 x Lower Outer Bushing | 5437651
2 x Lower Inner Pivot Shaft | 5137346
4 x Lower Inner Bushing | 5439874 5436832 5436505
Dimensions & Measurements :

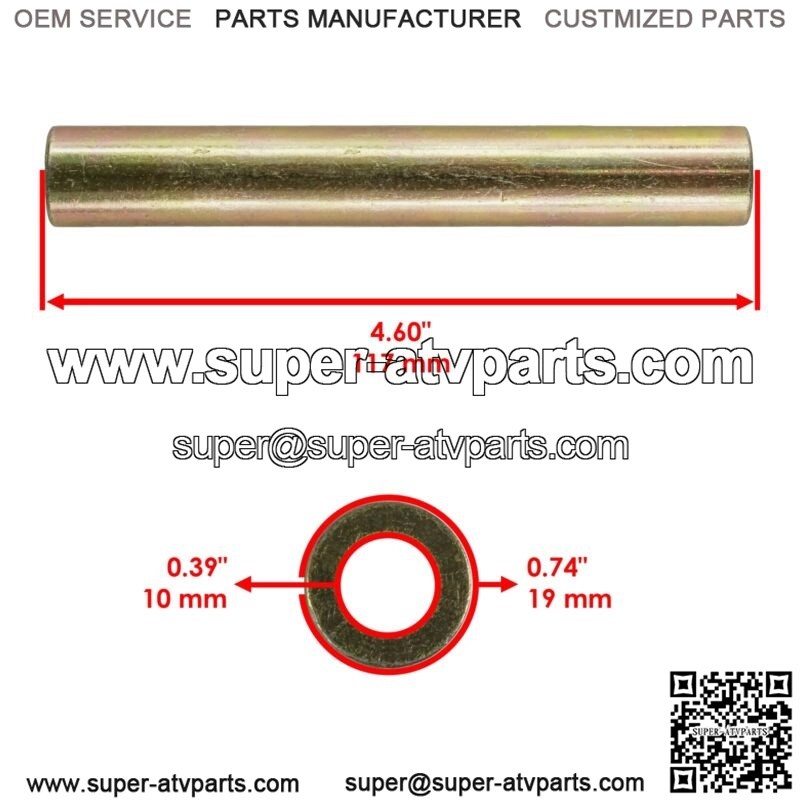

Lower Outer Pivot Shaft
Length : 117mm | 4.60″
Inner Diameter : 10mm | 0.39″
Outer Diameter : 19mm | 0.74″

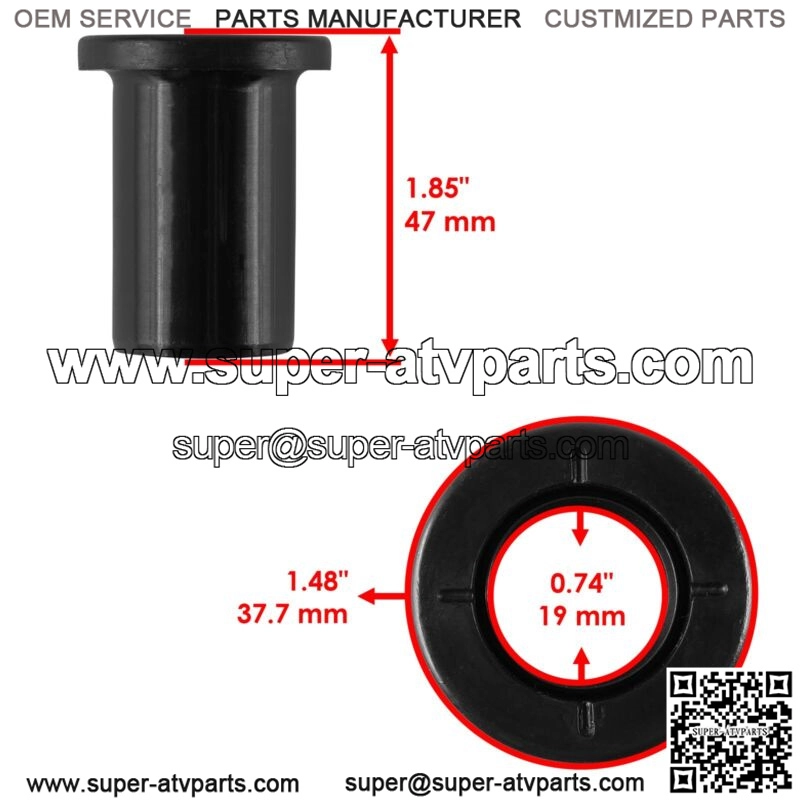

Lower Outer Bushing
Height : 47mm | 1.85″
Inner Diameter : 19mm | 0.74″
Outer Diameter : 37.7mm | 1.48″
Lower Inner Pivot Shaft
Length : 63.5mm | 2.5″
Inner Diameter : 10mm | 0.39″
Outer Diameter : 16mm | 0.62″

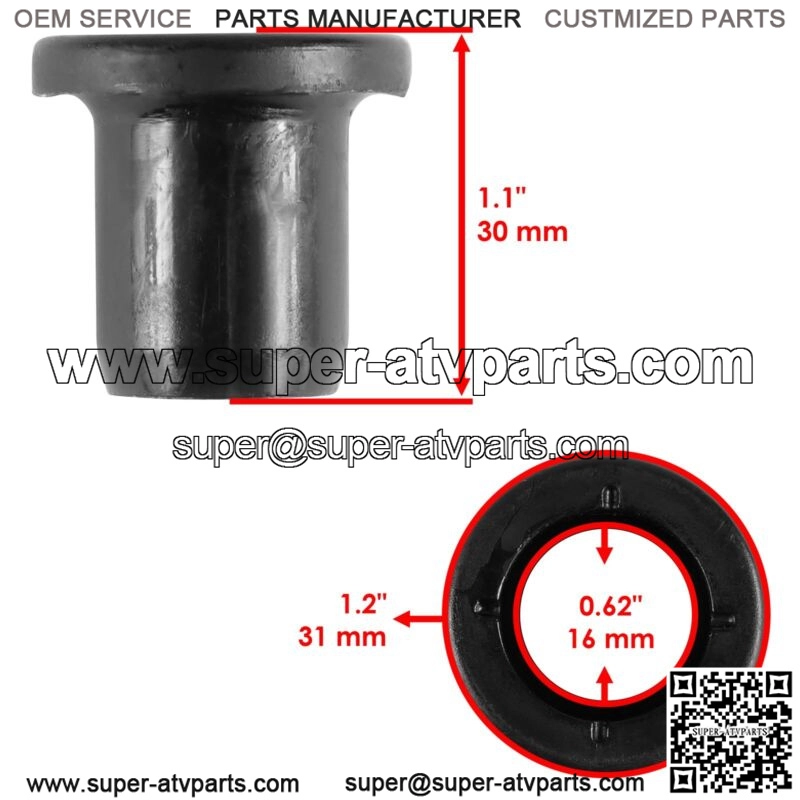

Lower Inner Bushing
Height : 30mm | 1.1″
Inner Diameter : 16mm | 0.62″
Outer Diameter : 31mm | 1.2″
Note: Installs On Location (E) (B) (C) In Second Picture
Control Arm Part Number:
Rear Lower Left 1019410-067 1019410-632 1019410-619 1022011-067 1022011-293 1022011-385 1022011-750
Rear Lower Right 1019411-067 1019411-632 1019411-619 1022012-067 1022012-293 1022012-385 1022012-750
**
