Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Worker 500 2001
Sportsman 500 2002-2005
Note:
Not Fits Sportsman 500 (A00CH50EB)
Order Includes:

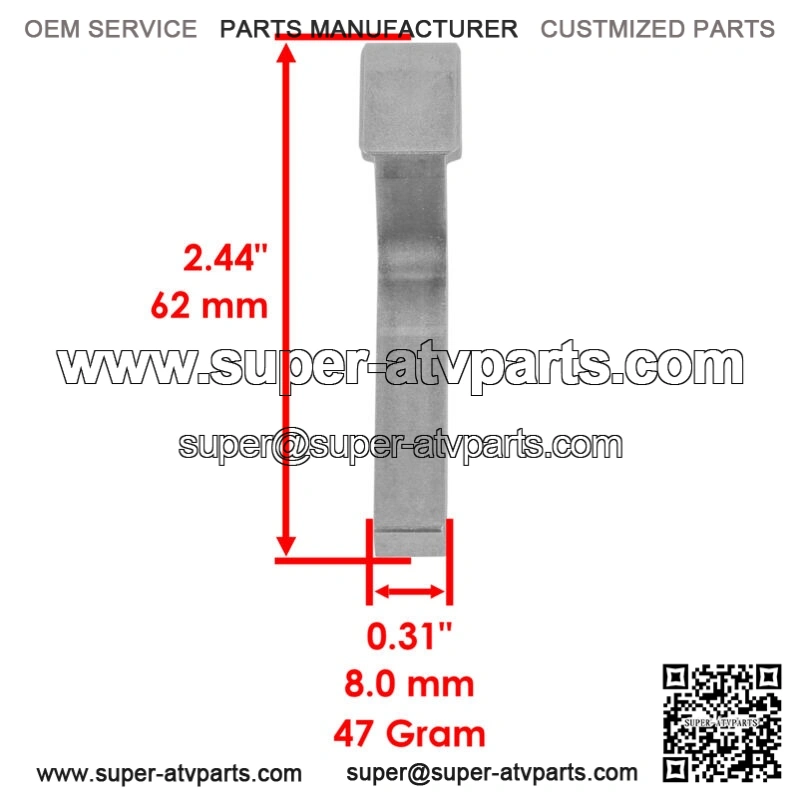

3 x Clutch Weight : 5632283
Length : 62 mm – 2.44″
Width : 8.0 mm – 0.31″
Weight Code: 10WHF
47 Gram

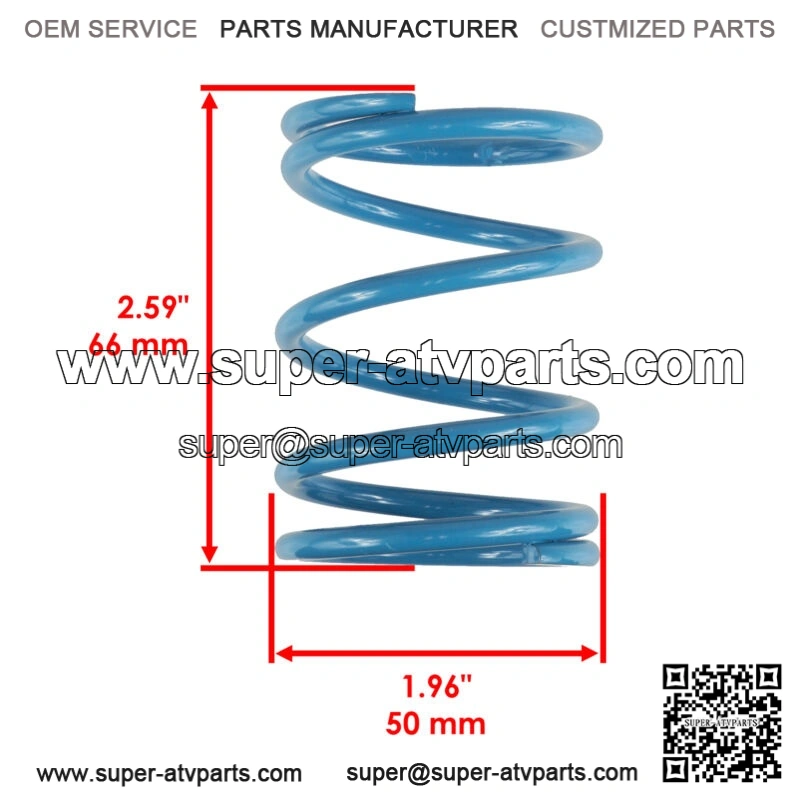

1 x Clutch Spring : 7041157
Length : 66 mm – 2.59″
Width : 50 mm – 1.96″
3 x Roller Bushing : 1321457 5020433
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Height : 9.0 mm – 0.35″

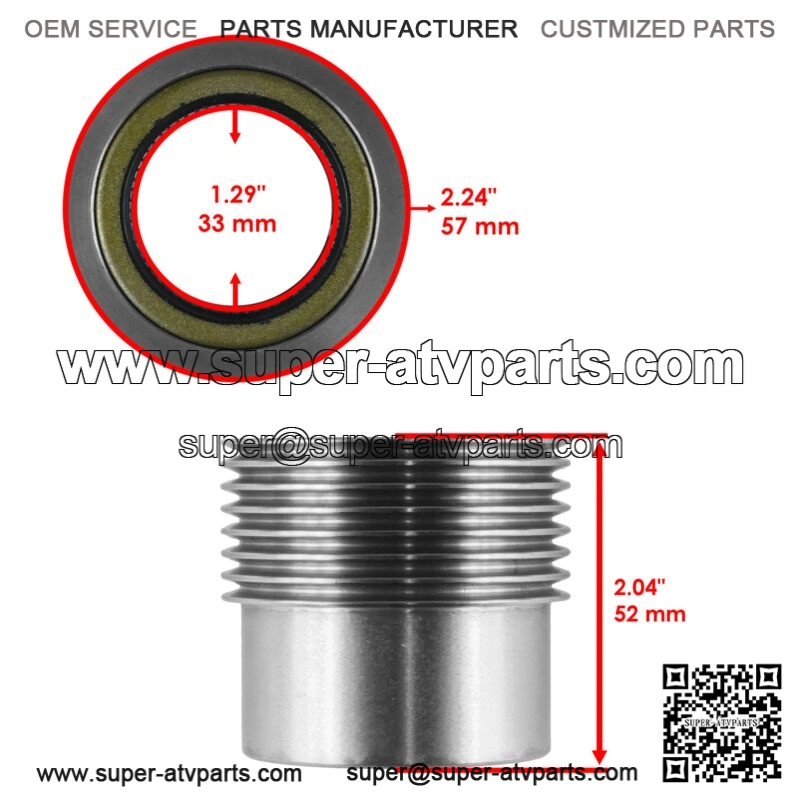

1 x EBC One Way Bearing : 1520231
Outer Diameter : 57 mm – 2.24″
Inner Diameter : 33 mm – 1.29″
Height : 52 mm – 2.04″

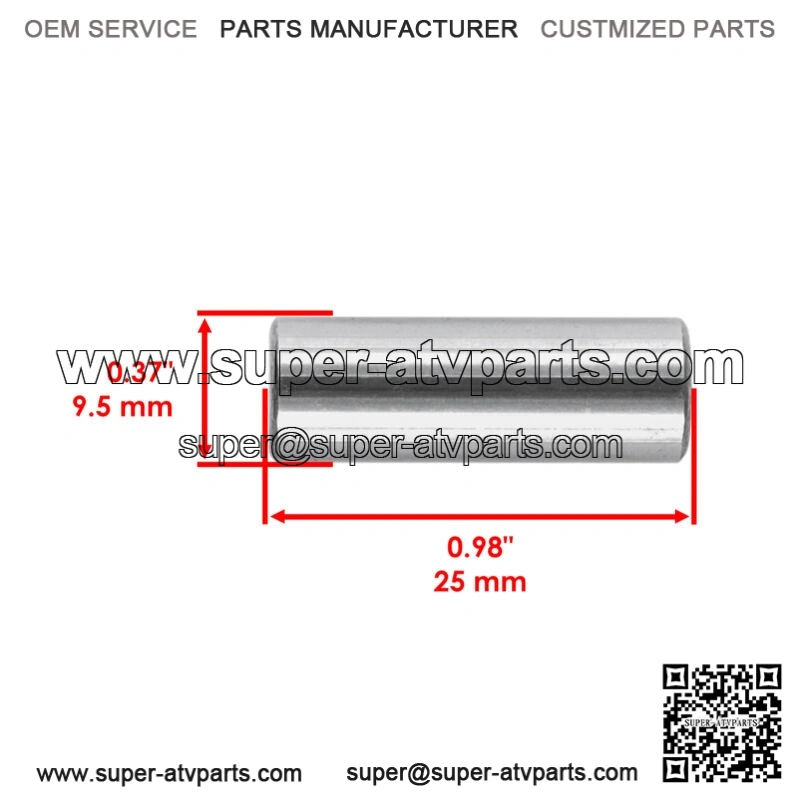

3 x Roller Pin : 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5430945 5430702 5438247
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″
6 x Button : 5431936 5439254
Outer Diameter : 14 mm – 0.55″
Width : 6.5 mm – 0.25″
3 x Shoulder Bolt : 7512266
Length : 63.8 mm – 2.51″
M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″
M5x1.0
1 x Washer : 7556204
Outer Diameter : 56.6 mm – 2.22″
Inner Diameter : 35.5 mm – 1.39″
Thickness : 0.8 mm – 0.031″
1 x Washer : 7556202 7556009
Outer Diameter : 68 mm – 2.67″
Inner Diameter : 43 mm – 1.69″
Thickness : 0.80 mm – 0.03″
1 x Spacer : 5131646 5631119
Outer Diameter : 57 mm – 2.25″
Inner Diameter : 32 mm – 1.25″
Height : 33 mm – 1.30″
1 x Bearing Cover : 3576510
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Height : 13 mm – 0.51″
1 x Nut : 2201615 7547130
Outer Diameter : 37.5 mm – 1.47″
Inner Diameter : 30.1 mm – 1.18″
Height : 12.8 mm – 0.50″
1 x Bearing Bushing : 3585712
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Height : 20 mm – 0.78″
