Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 400 2005
Sportsman 400 HO 4X4 2012-2014
Sportsman 450 2006-2007
Sportsman 500 DUSE HO 2001
Sportsman 500 EFI HO 2001-2013
Sportsman 500 RSE HO 2001
Sportsman X2 500 EFI 2006-2010
Sportsman Touring 500 2009-2014
Sportsman Forest 500 2012-2013
Scrambler 500 2X4 1998-2009
Scrambler 500 4X4 1998-2009
Hawkeye 400 HO 2X4 2011-2014
Worker 500 2001

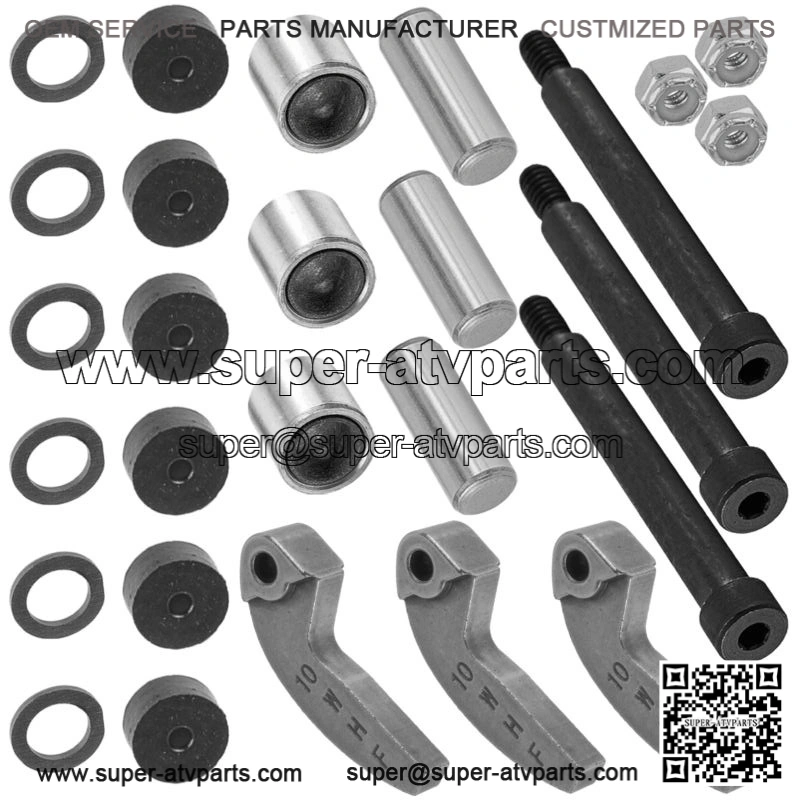

Order Includes:

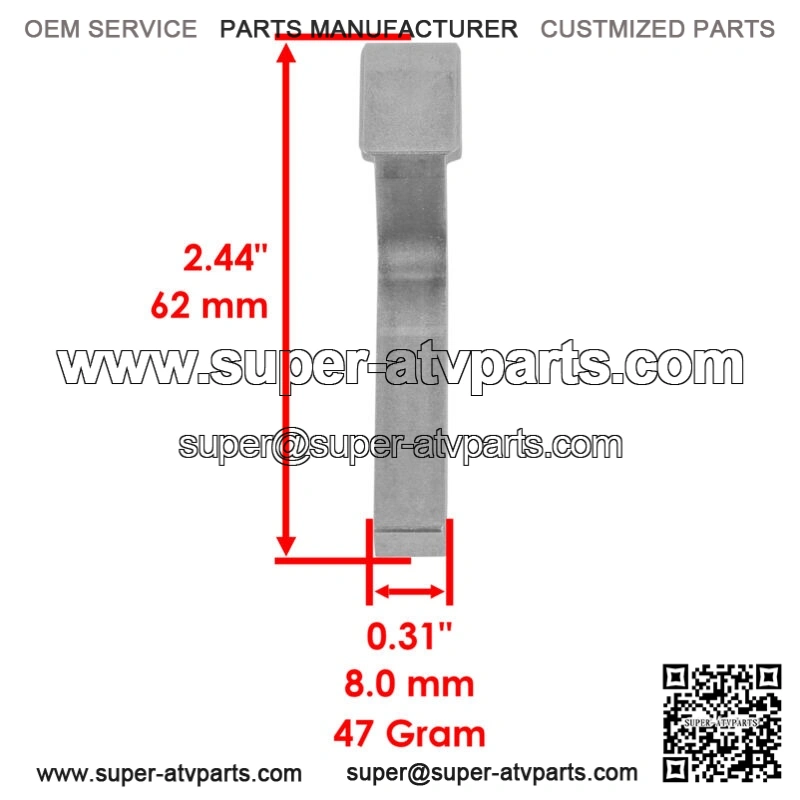

3 x Clutch Weight : 5632283 5630710
Length : 62 mm – 2.44″
Width : 8.0 mm – 0.31″
Weight Code: 10WHF
47 Gram

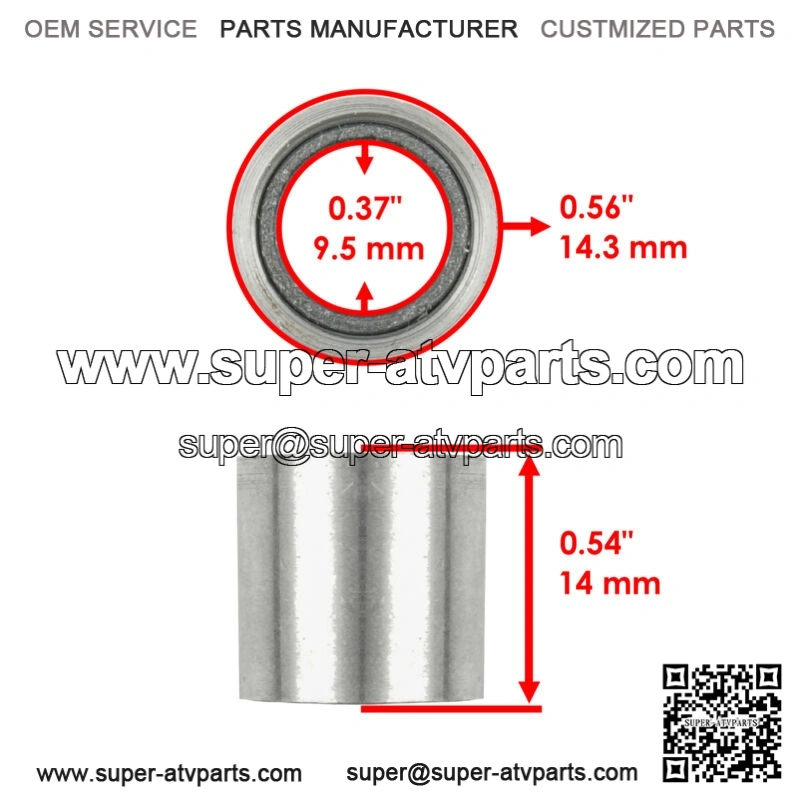

3 x Roller : 1321622
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Width : 14 mm – 0.54″

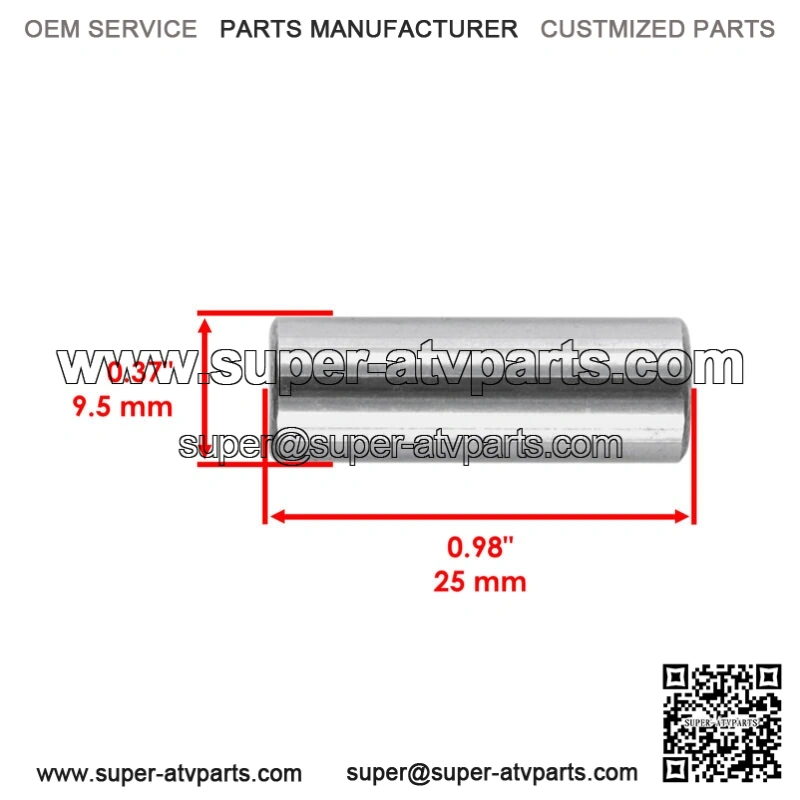

3 x Roller Pin: 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5438247 5430702 5430945
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″
6 x Button : 5439254 5431936
Outer Diameter : 14 mm – 0.54″
Height : 6.5 mm – 0.25″

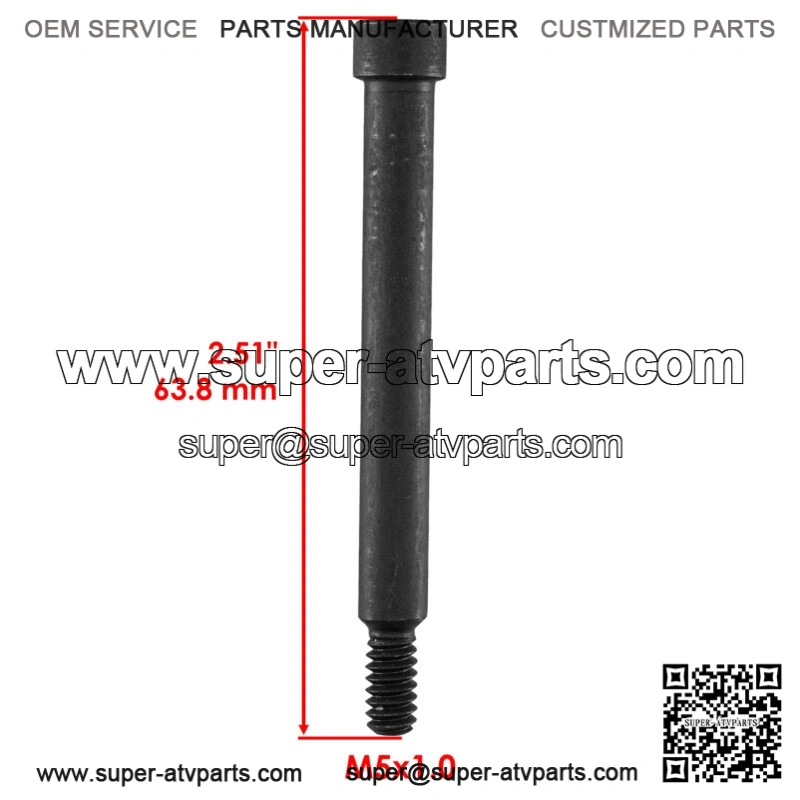

3 x Shoulder Bolt : 7512266
Length : 63.8 mm – 2.51″
M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″
M5x1.0
