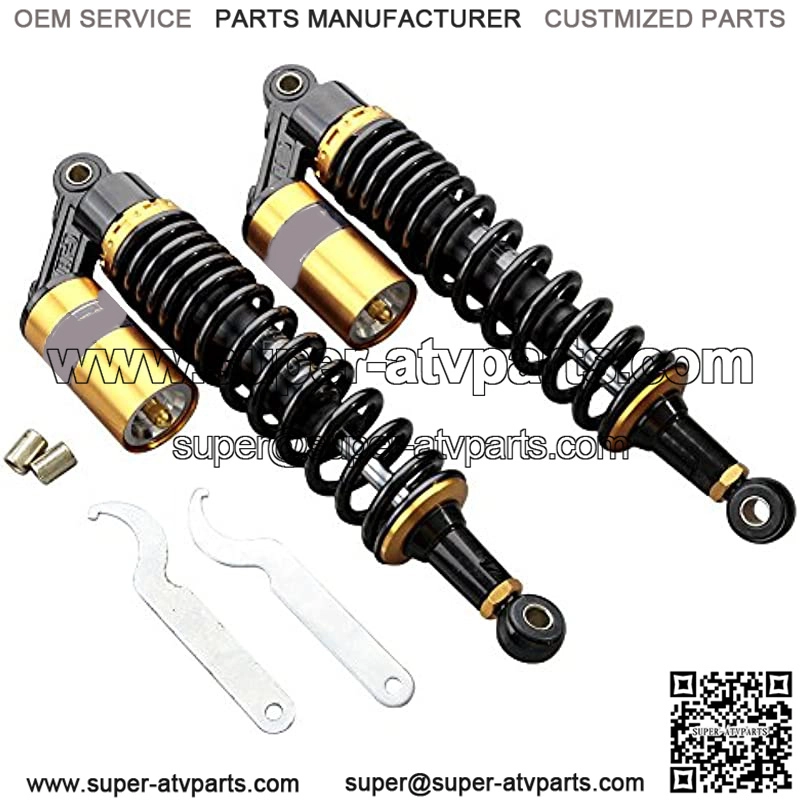

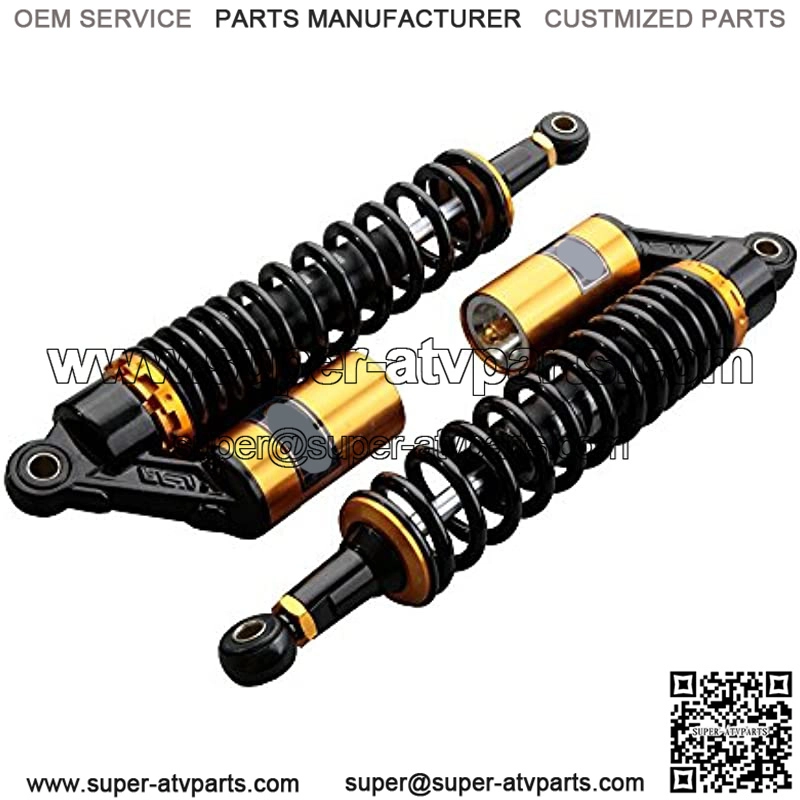

A Pair of Round Hole 340mm Aluminum and Solid Steel Shock Absorber
Pressure can be adjusted by springs or air (nitrogen); Operation of the coil-over springs and air cylinder is helpful to reduce the shock.
Shock Absorber bottom/ends type: Round End
No instruction included, professional installation recommended.
Universal fit for most 340mm Motorcycle Shock Absorber For Honda/Yamaha/Suzuki/Kawasaki;Dirt bikes, Gokart, ATV, Motorcycles and Quad. Please check your mounting measurement before purchase. Product Description
Description:

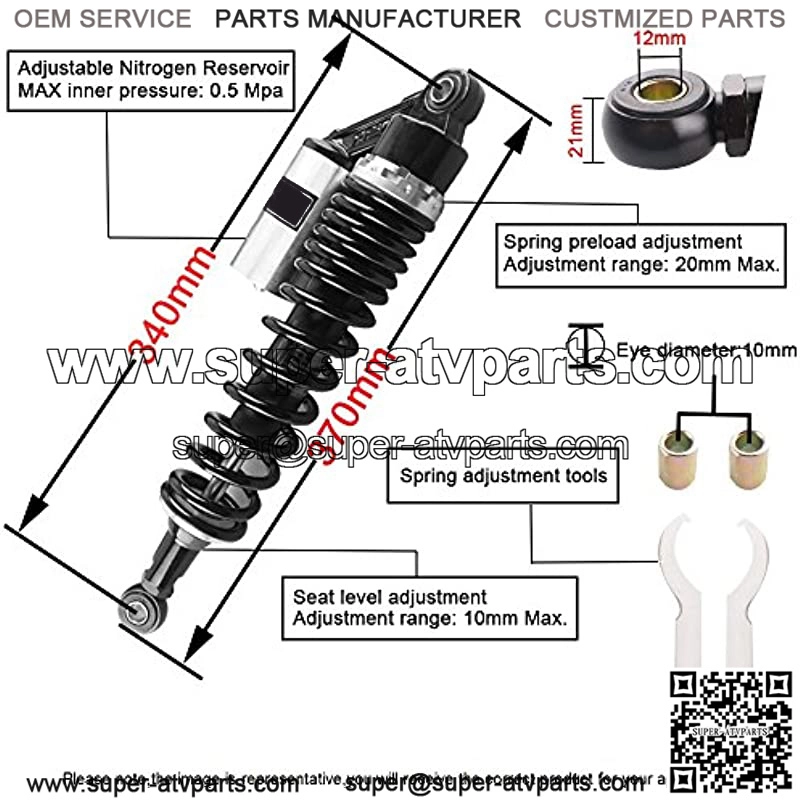

Dimension:
Total Length:370mm (14 3/4″)
Length of Eye to Eye Core:340mm(13 3/8″)
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg (About 660 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
A complete pair RFY a
