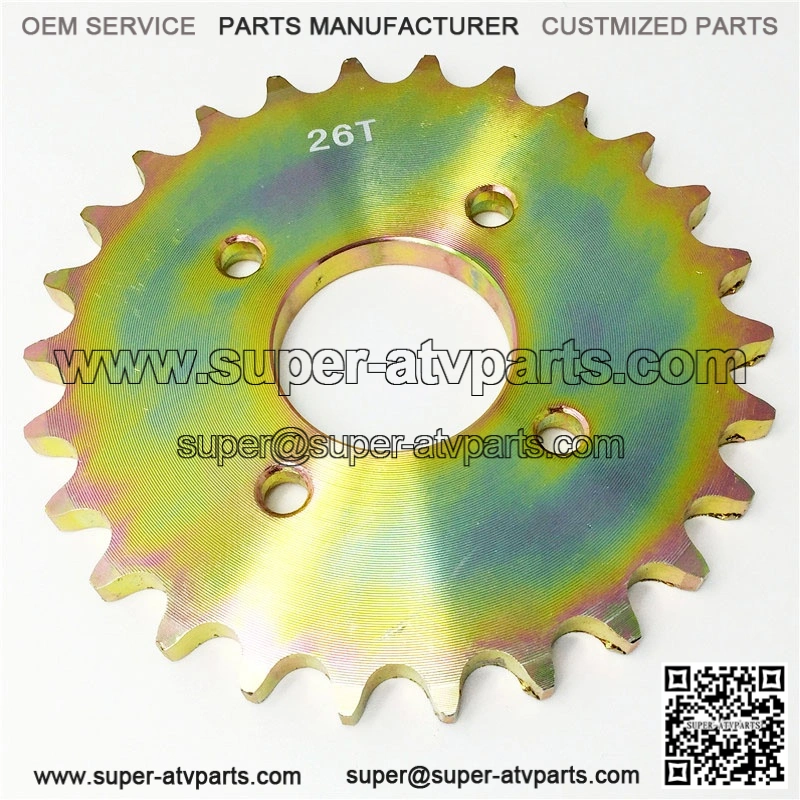

This driven sprocket has 26 teeth and fits a 16mm pitch chain, with a chain width of 20mm. Standard fitment on the Kazuma 110 and 150cc Falcon. It fits a quad bikes rear wheel using four screws.
SPECIFICATIONS
DRIVEN sprockets are attached to the wheels or axles.
Outer Diameter of Sprocket (from tip of tooth to tip of tooth): 138 mm / 5.43 inches
Distance Between the Tips of the Teeth: 16 mm / 0.63 inches
Sprocket Thickness: 9 mm / 0.35 inches
Diameter of Central Hole: 44 mm / 1.73 inches
Diameter of Fixing Hole(s): 8 mm / 0.31 inches
Greatest Distance Between Sprocket Fixing Holes (centre of eye to centre of eye): 70 mm / 2.76 inches
Shortest Distance Between Sprocket Fixing Holes (centre of eye to centre of eye): 49 mm / 1.93 inches
Number of Teeth: 26
