Front or Rear Lower Inner A-Arm Bushing Kit for Polaris General 4 1000 2021-2022 (For: Polaris)
Front or Rear Lower Inner A-Arm Bushing Kit for Polaris General 4 1000 2021-2022 (For: Polaris)
Front or Rear Lower Inner A-Arm Bushing Kit for Polaris General 4 1000 2021-2022 (For: Polaris)
Premium Quality Replacement Part
Front Lower Upper or Rear Lower Inner A-Arm Bushing Kit
For Polaris Models:
General 4 1000 DELUXE RC PREM EPS RC 2021-2022
A-Arm Part Number:
Front Upper Left 1023061-458
Front Upper Right 1023062-458
Front Lower Left 1021416-458
Front Lower Right 1021417-458
Rear Lower Left 1021414-458
Rear Lower Right 1021415-458

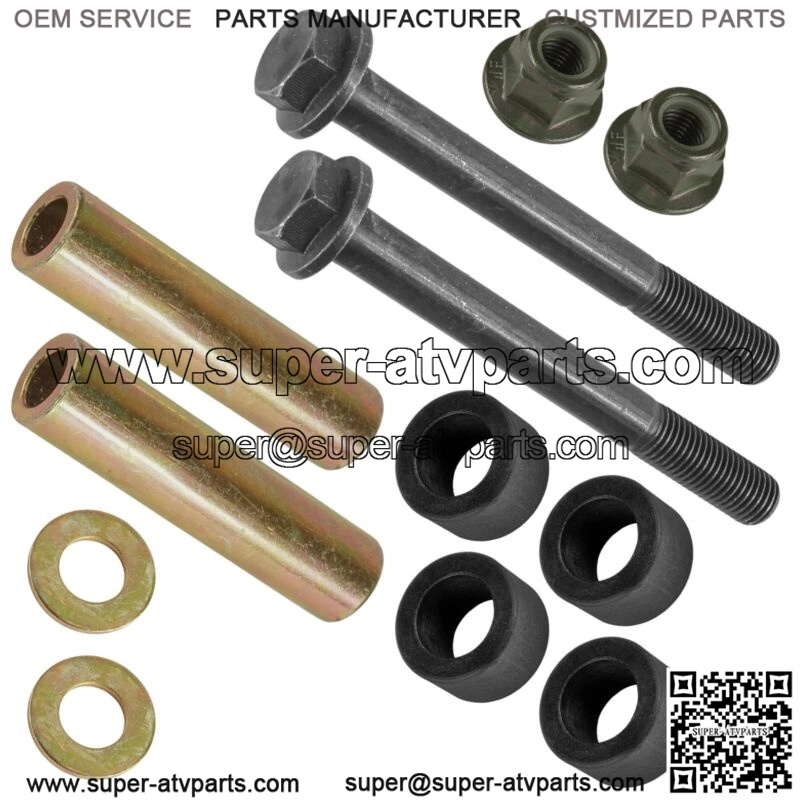

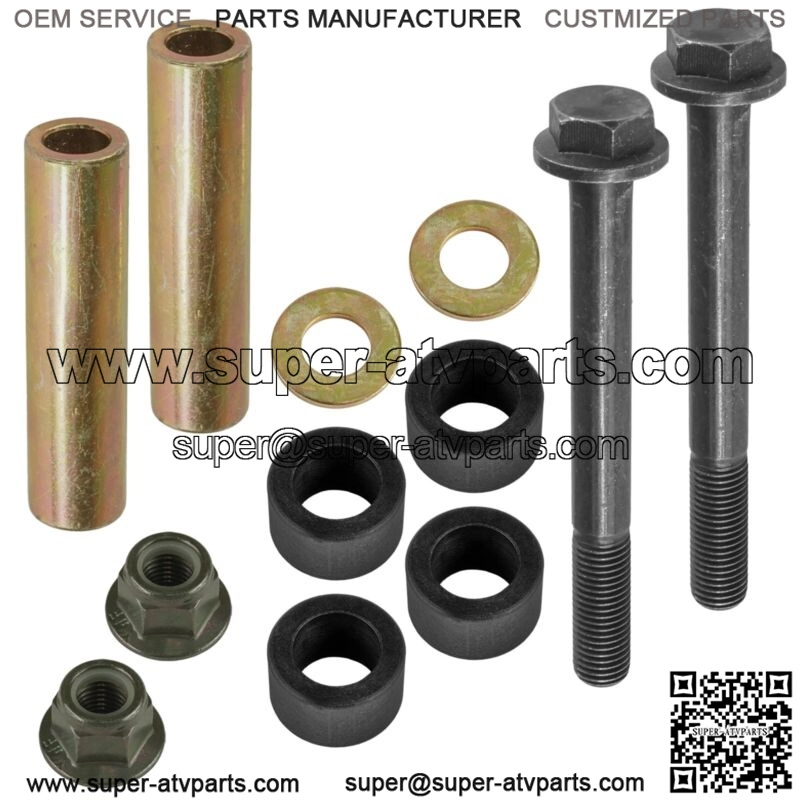

Order Includes:
2 x Pivot Shaft | 5139966
4 x Bushing | 5452233

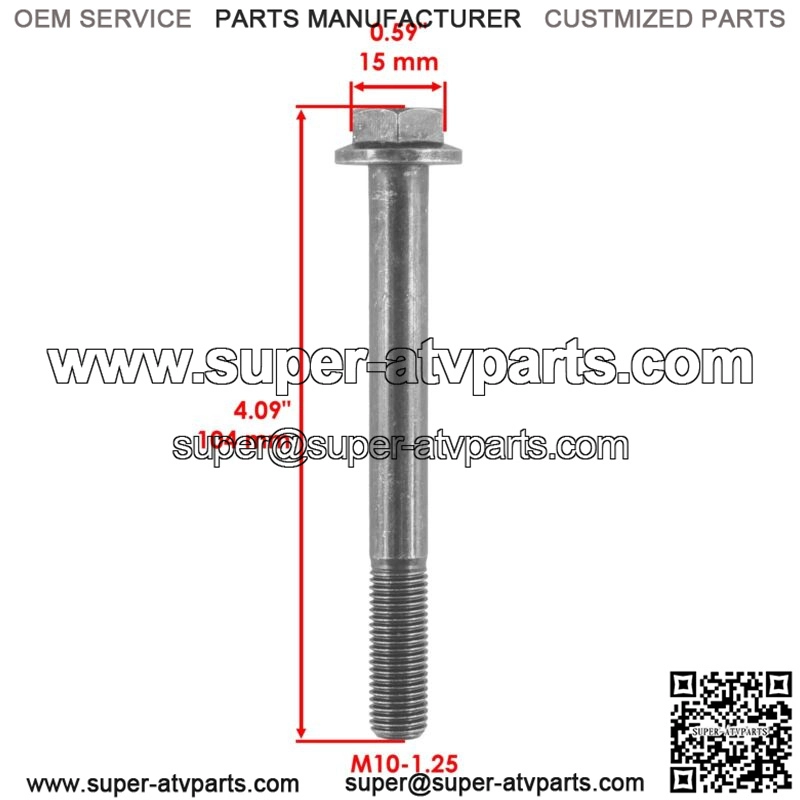

2 x Bolt | 7519043
2 x Nut | 7547333
2 x Washer | 7556153
Dimensions & Measurements :

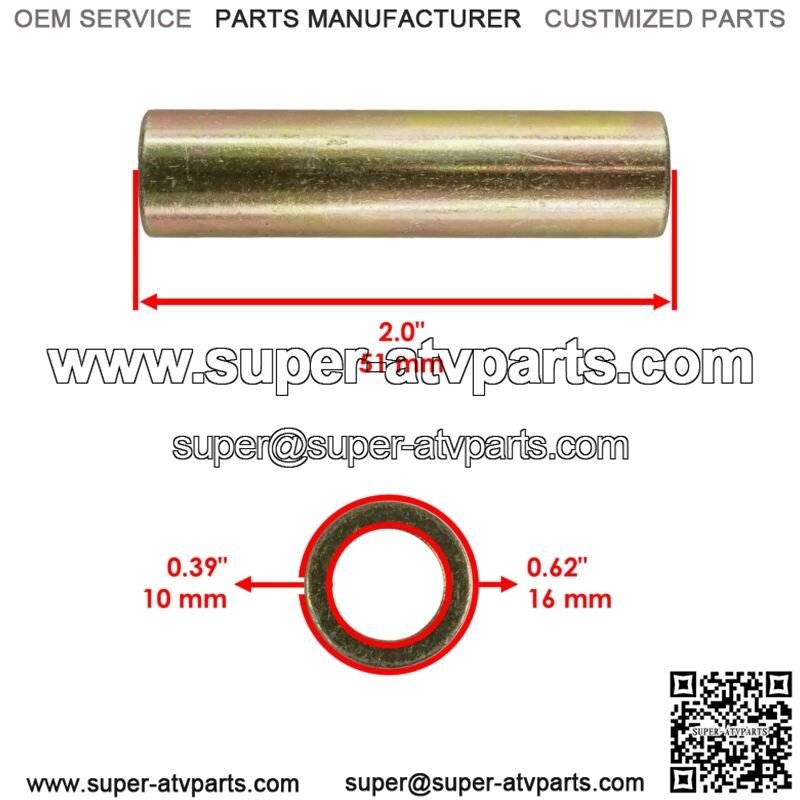

Pivot Shaft
Length:51mm
Inner Diameter:10mm
Outer Diameter:16mm
Bushing
Outer Diameter:26mm
Inner Diameter:16.5mm
Height:15.5mm

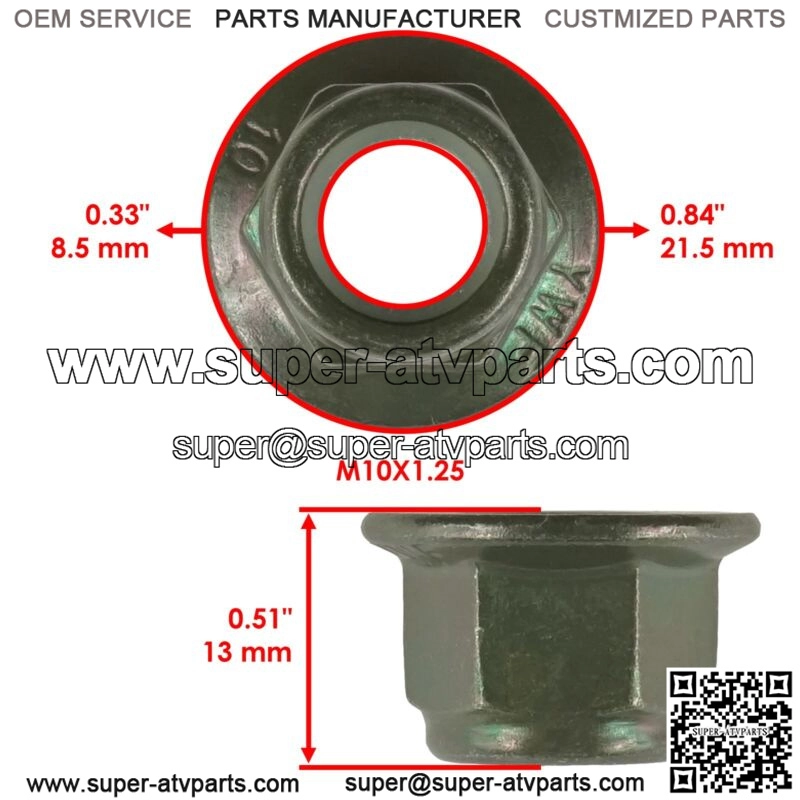

Nut
M10x1.25
Part Number :
Pivot Shaft | 5139966
Bushing | 5452233
Bolt | 7519043
Nut | 7547333
Washer | 7556153
**
