12.5″ 320mm A Pair Rear Shocks Absorber Replace Some Honda CX 500 CX 650 Rear Suspension
12.5″ 320mm A Pair Rear Shocks Absorber Replace Some Honda CX 500 CX 650 Rear Suspension
12.5″ 320mm A Pair Rear Shocks Absorber Replace Some Honda CX 500 CX 650 Rear Suspension

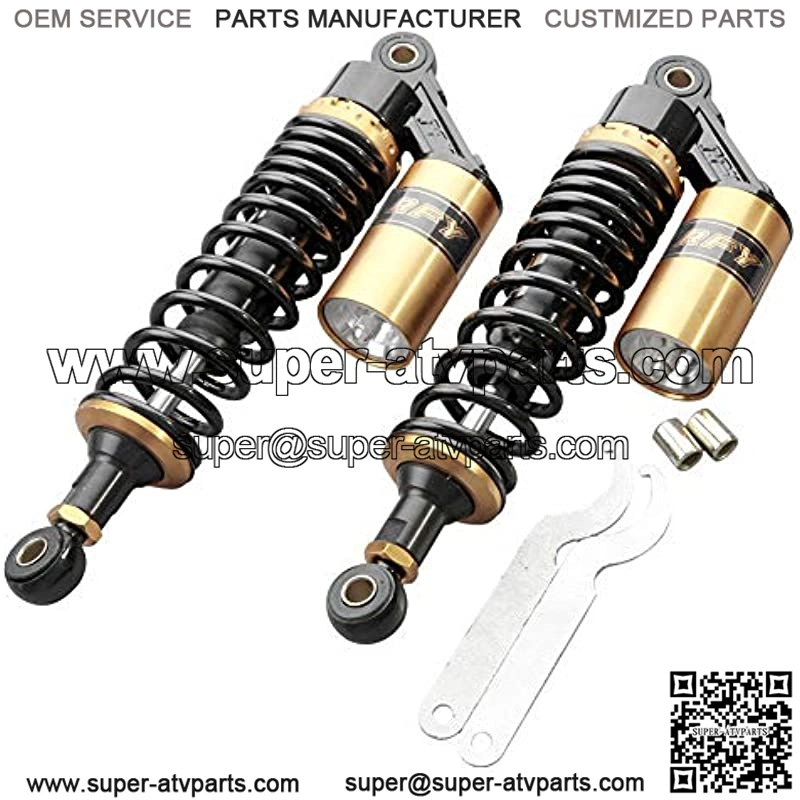

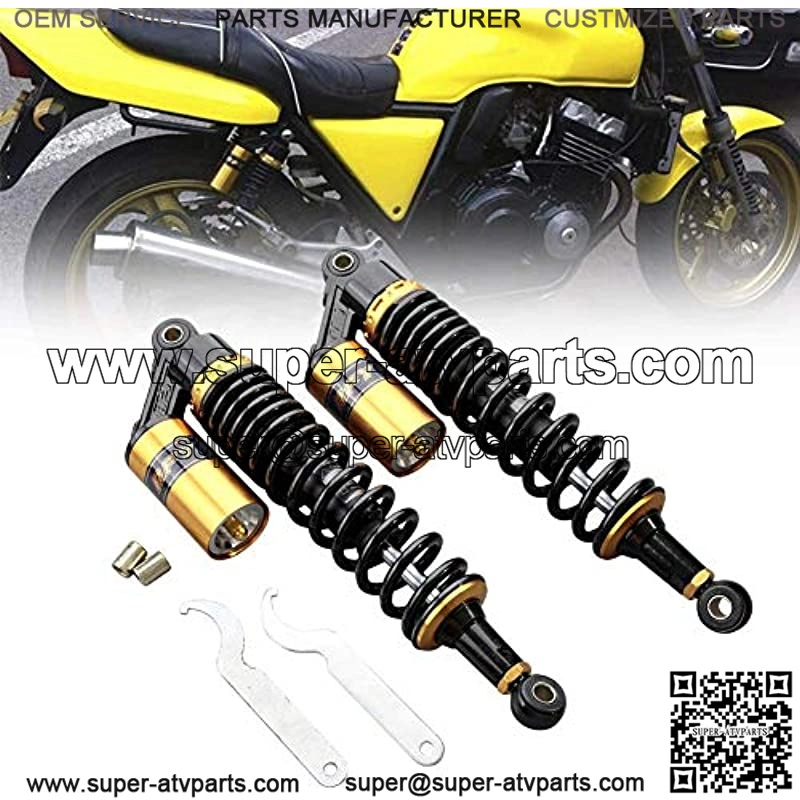

A Pair of Round Hole 320mm Aluminum and Solid Steel Shock Absorber
Pressure can be adjusted by springs or air (nitrogen); Operation of the coil-over springs and air cylinder is helpful to reduce the shock.
Shock Absorber bottom/ends type: Round End
No instruction included, professional installation recommended.
Universal fit for most 320mm Motorcycle Shock Absorber For Honda/Yamaha/Suzuki/Kawasaki;Dirt bikes, Gokart, ATV, Motorcycles and Quad. Please check your mounting measurement before purchase.
Description:
Dimension:
Total Length: 350mm (13 3/4″)
Length of Eye to Eye Core: 320mm (12 5/8″)
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 7mm
Spring Width: 60mm
WorStroke: 60mm
Spring Stiffness: 110 kg
Maximum load/Pair: 200 kg (440 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
A complete pair RFY air ga
